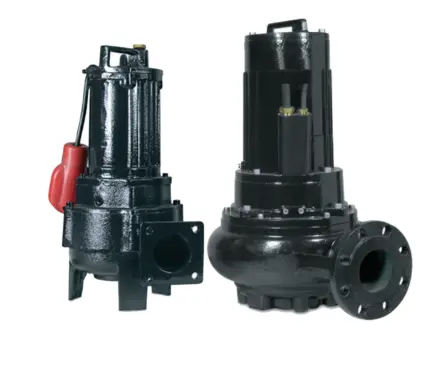

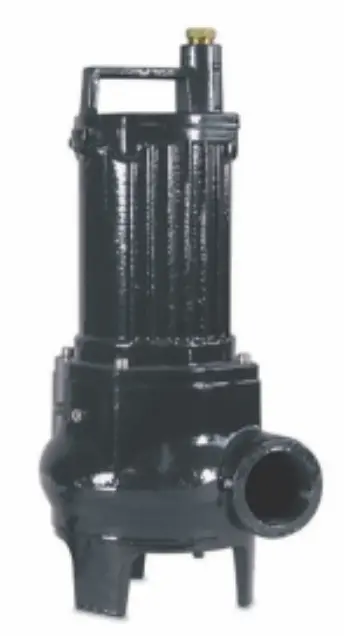

CRI Waste Water Pumps - GB-CV240-FD-24kw

https://www.t4pumps.com/web/image/product.template/17777/image_1920?unique=70c0312
(0 review)

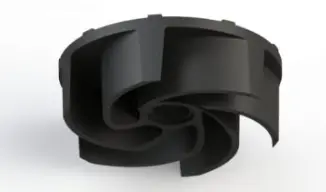

GB Series pumps are equipped with vortex impeller. The benefit of a vortex impeller over a channel impeller is the minimized risk of clogging. A vortex impeller is also a better choice and pumped liquid has a high content of sand. These pumps have large free passage up to 3½” in diameter suitable for lifting of sewage liquid, civil waste and industrial waste water containing solids and viscos materials, heavy muds or fermented sludge.

Specification
Maximum Flow
upto 216m³/h
Head
upto 65m
Speed
1450/2900 RPM
Impeller Type
Vortex
Outlet Size
upto 100 mm
Power
upto 50kW
Liquid Temperature
upto 40°C
Max Solid Size
upto 90mm
Shaft Seal
Mechanical Seal
Material of Construction (MOC)
CI with 0.3% Cu, Ni and Mo
Bearing Lubrication
Grease
Maximum Immersion Depth
20m
Maximum working Pressure
upto 6.5bar
Features:
  • Minimized risk of clogging & minimum wear and tear
  • Large free passage
  • Thermal protection and moisture sensor in specific ranges
Application:
  • Pumping sewage water
  • Civil waste and industrial waste water containing solids
  • Viscous materials
  • Heavy muds
  • Raw or fermented sludge
