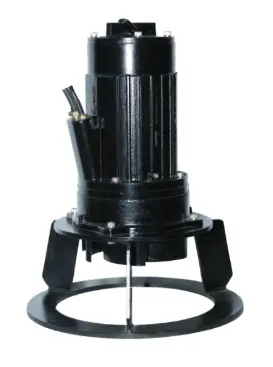

CRI Waste Water Pumps - AG-CV220-D-4-22kw
Agitators are used for effective mixing, avoiding deposits and to generate high flow and it can be used without difficulty in all kinds of tank geometries.
Specification
Maximum Flow | upto 1558m³/h |
Head | upto 10m |
Speed | 1450/2850RPM |
Impeller Type | Vortex type |
Outlet Size | NA |
Power | upto 22kW |
Liquid Temperature | upto 40°C |
Max Solid Size | NA |
Shaft Seal | NA |
Material of Construction (MOC) | Motor – CI with 0.3% Cu, Ni and Mo, Blades – Stainless steel |
Bearing Lubrication | Grease |
Maximum Immersion Depth | 20m |
Maximum working Pressure | NA |
Features:
- Inbuilt thermal overload protector and moisture sensor in specific ranges
Application:
- Wells & rainwater collection basins & waste water treatment plants
- Remove any builtup deposited at the bottom of the sump
