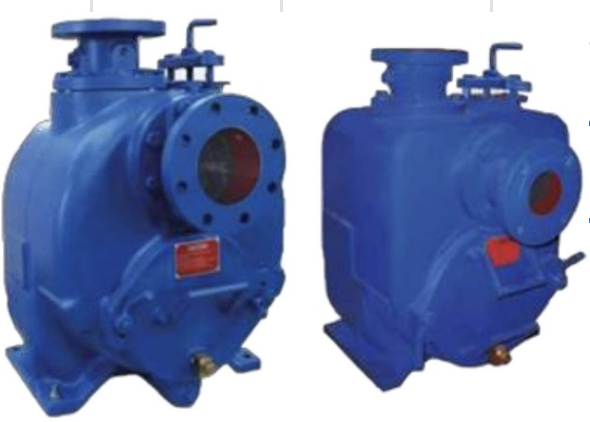

CRI Pumps Sewage Pump - ECN-250D - 650 to 1350
Light waste water pumps are designed for pumping waste water from residential and small commercial buildings. These motors are of dry type with E or F class insulation for reliable service and pumps are offered with different type of impellers such as vortex, single channel enclosed, single channel semi open, multi-channel enclosed etc. These pumps are available in both single phase and three phase power supply for continuous duty. Double face mechanical seals ensure reliability and trouble-free service for long life. Few models are supplied with fully stainless steel
General Specifications
| Maximum Flow | upto 180m³/h |
| Head | upto 56m |
| Speed | 2900 RPM |
| Impeller Type | Enclosed / Semi open Impeller |
| Outlet Size | upto 150mm |
| Power | upto 15kW |
| Liquid Temperature | upto 40°C |
| Max Solid Size | upto 19mm |
| Shaft Seal | Mechanical Seal |
| Material of Construction (MOC) | Cast Iron & Stainless Steel |
| Bearing Lubrication | Grease |
| Maximum Immersion Depth | 10m |
| Maximum Working Pressure | upto 5bar |
Features
- Wide hydraulic ranges
- Heavy duty bearings for long life
- Dual mechanical seal
- Stainless steel motor body
Application
- Dewatering
- Light sewage handling
- Waste water transfer
- Pumping water from pit, trench and basin
- Flood control
- ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
- SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
- ALL INFORMATIONS, DESCRIPTIONS, SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UPDATED WITHOUT PRIOR NOTCE
Technical Specifications
| Model | |
|---|---|
| Model | ECN-250D |
| Brand | |
|---|---|
| Brand | CRI |
| Others | |
|---|---|
| Outlet Size | 10” x 10” |
| RPM | 650 to 1350 |
| Power Range | 10 to 100 |
| Flow Range | 55 to 780 |
| Impeller Dia | 374.65 |
| Head Range | 2.5 to 39.8 |
| Solid | 76.2 |
