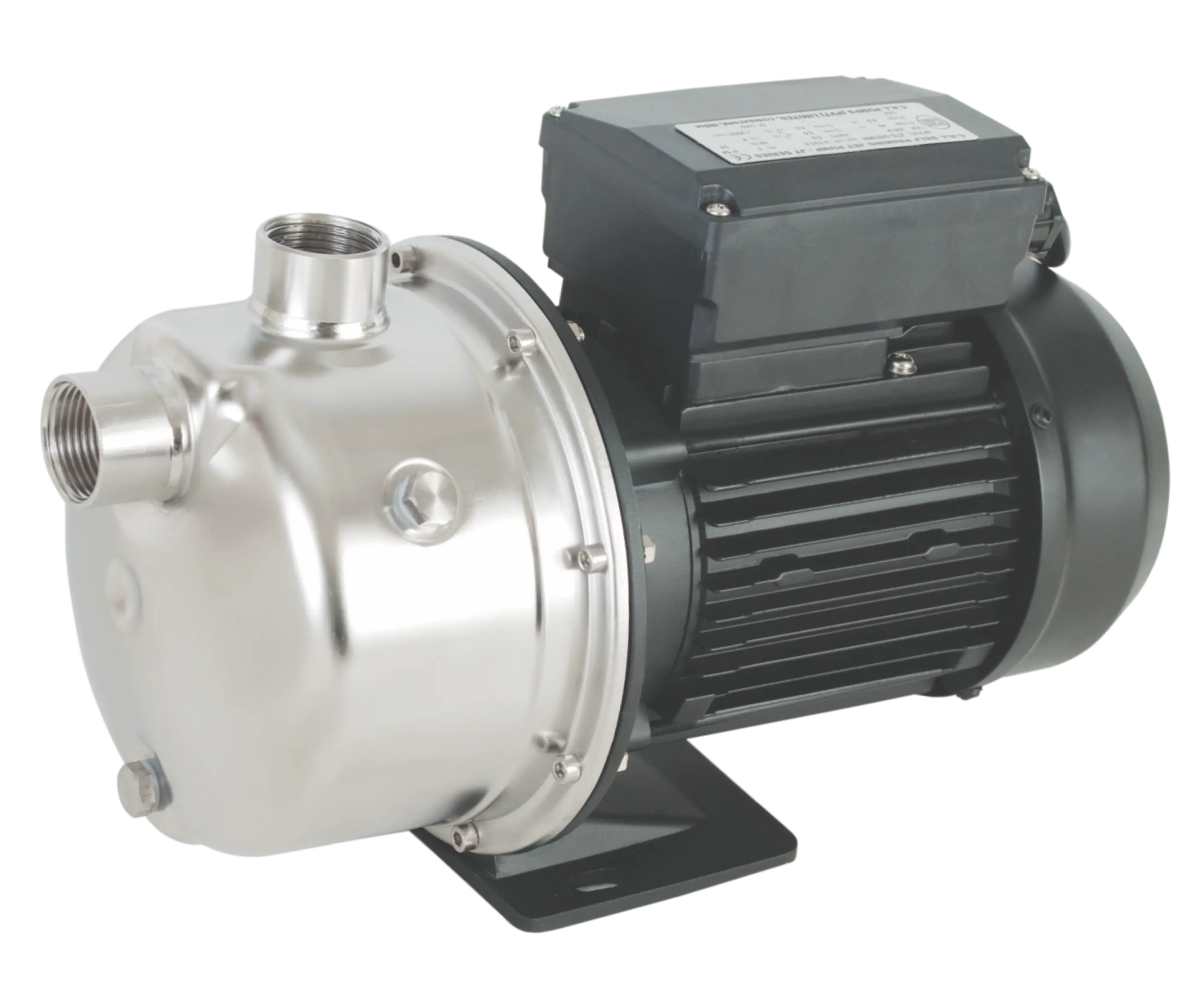

C.R.I. JT Series pumps are self-priming type supplied with radial flow impeller for shallow well and sump application.These pumps are available in both single phase and three phase power supply and powered by a totally enclosed fan cooled motor. Jet pump’s casing and ejector unit are designed carefully to give the best hydraulic efficiency and suction lift characteristic. The back pull out design facilitates ease of maintenance. JTS series are offered with fully stainless steel pump portion for hygiene applications. Single phase pumps are thermally protected.
Technical Specifications -JTS
|
Pump model |
JTS-3/07M |
| Motor Power | 0.75 kW |
| Speed | 2850 rpm |
| Versions | Single phase – 230V, 50Hz, A.C. Supply |
| Type of Duty | S1 Continuous |
| Degree of Protection | IP 54 |
| Class of Insulation | F |
| Rated Flow rate | 1.8 m³/h |
| Rated Head | 30 m |
| Max.Suction Lift | Upto 7 m |
| Shaft Seal | Mechanical seal( Ceramic & Carbon |
| Max.Liquid Temperature | 35°C |
| Max.Ambient Temperature | 50°C |
| Max.Operating Pressure | 4.2bar |
| Suction x Delivery Size inches | 1″ & 1″ |
Features
- High efficiency
- Compact and rigid construction
- Back pull out design
- Single phase pumps are thermally protected
Application
- Residence
- Pressure boosting system
- RO Systems
- Cooling system
- Washing systems
- Utility application in industries and buildings
