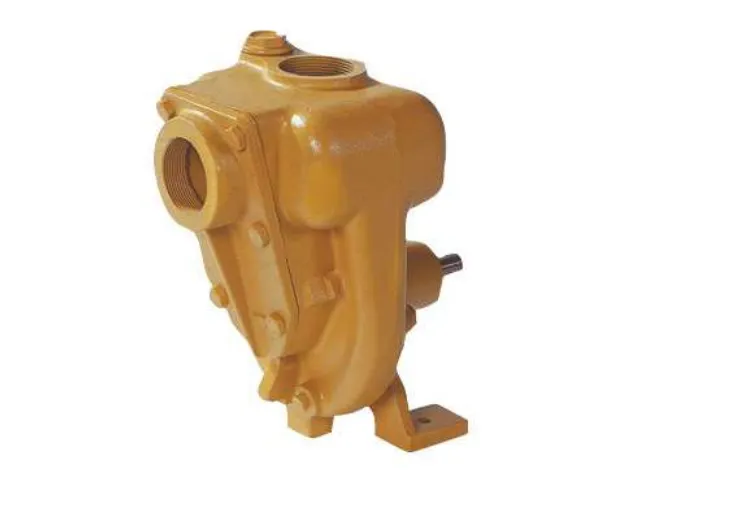

Self-priming pump in bare shaft version
with open impeller, for draining clear or
moderately dirty water.
Particularly suitable for small irrigations in
the agricultural and gardening sector.
The check valve located inside the inlet
prevents the pump from emptying after it
has stopped, guaranteeing its priming.
Specifications
| Specification | Value |
| Model |
B2KQ-A “W” |
| Pump Type |
Self-priming pump in bare shaft version with open impeller |
| Power (P2) |
1.5 kW |
| Speed |
2900 RPM |
| Maximum Flow Rate |
26.5 m³/h |
| Maximum Head |
1.9 bar |
| Maximum Suction Depth |
6 m |
| Maximum Liquid Temperature |
+70°C |
| Maximum Solid Passage |
16 mm |
| Inlet Size |
2″ |
| Outlet Size |
2″ |
| Dimensions (A/B/H) |
220 × 370 × 320 mm |
| Shaft Material |
Stainless Steel AISI 316 |
| Mechanical Seal Material |
Carbon/Nbr/Alumina |
Features
-
Rapid Self-Priming
-
Maintenance Friendly
-
Versatile Drive Options
-
Solids Handling
Features
- Construction
- Agriculture
- Emergency
- Industry
