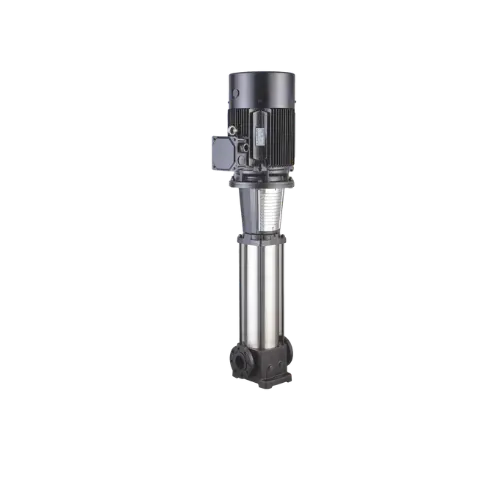

Vertical Inline Centrifugal Pump - MVC-120/05T - 55.00 kW
C.R.I MVHS pumps are vertical multistage centrifugal type supplied with radial flow impeller for higher pressure application. The inline construction simplifies the piping work and major saving on floor space compare to other type of pumps. Most of the wetted parts in the pumps are made up of corrosive resistant stainless steel material for durability. Inline pumps are powered by totally enclosed fan cooled single phase or three phase motors. All single phase motors are thermally protected. Three phase pumps are supplied with either standard or premium efficiency motors. The control system is made with PLC / Micro controller / VFD for constant pressure, energy saving and fail-safe automatic operation. These systems are supplied as complete package including manifold, pressure vessel, check/gate valves, pressure gauge/ transducer, control panel with VFD/PLC/Micro controller etc.
General Specifications
| Power Range( kW) | 0.37 to 110 kW |
| Speed | 2900 rpm |
| Versions | Single phase (0.37 – 2.2 kW) – 230V, 50Hz, A.C. Supply, Three phase (0.37 – 110 kW) – 380-415V, 50Hz A.C. supply |
| Duty | S1 Continuous |
| Degree of Protection | IP 55/td> |
| Class of Insulation | F |
| Maximum Discharge | upto 1200 m³/h |
| Maximum Head | upto 320 m |
| Shaft seal | Mechanical seal |
| Maximum Liquid Temperature | Standard : -10˚C to 90˚C , Optional : upto 120˚C |
| Maximum Ambient Temperature | 40˚C |
| Maximum Operating Pressure | Upto 32 bar |
| Flange Standard | DIN |
| Outlet size | 25 to 150mm |
Features
- Sophisticated water pressure throughout the building round the clock and ensures efficient & constant water pressure management
- No manual interference to operate the pumping system
- Low noise and vibration level
- Reliable automation
- Stainless steel impeller and casings
- Thermally protected single phase motors
- Different materials of construction
Application
- Pressure boosting system for multifamily residences, hotels, offices, healthcare hospitals, villas, theatres, auditorium, industries etc.
- Industrial washing and cleaning system
- 1 YEAR WARRANTY ON MANUFACTURING DEFECTS, IF APPLICABLE
- A 15% HANDLING CHARGE WILL BE APPLIED TO ALL RETURNED ITEMS
- RETURN SHIPPING WILL BE AT THE CUSTOMER'S EXPENSE
- ONLY ITEMS PURCHASED WITHIN 30 DAYS ARE ELIGIBLE FOR RETURN AND RECEIVED IN ORIGINAL PACKING CONDITION
- ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
- SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
- DELIVERY SCHEDULES WILL BE CONFIRMED UPON RECEIPT OF ORDER
- ALL INFORMATIONS,DESCRIPTIONS,SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UDPATED WITHOUT PRIOR NOTCE
Technical Specifications
| Model | |
|---|---|
| Model | MVC-120/05 |
| Power Rating | |
|---|---|
| kW | 55.00 kW |
| Brand | |
|---|---|
| Brand | CRI |
| Others | |
|---|---|
| Outlet Size | 5” x 5” |
