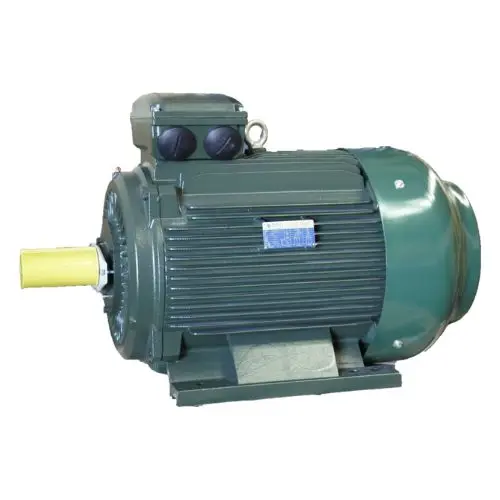

T4 Electric Motor

T4 Electric Motor

(0 review)

T4 IE3 motors are premium efficiency electric motors designed for industrial applications requiring optimal energy savings and reliable performance. These cast iron construction motors feature advanced engineering to deliver superior efficiency while maintaining robust durability for demanding operational environments.

General Specifications

SpecificationDetails
Power Range0.37kW to 400kW
Poles2, 4 and 6 poles
Speed Range750-3600 RPM
Voltage Options230 V, 415 V, 525 V
Frequency50Hz/60Hz operation
Efficiency ClassIE3 Premium Efficiency (up to 95%)
Frame SizesCast iron 80-400
Protection RatingIP65 standard

Current Data

  • Efficiency Rating: 93.6% typical

  • Energy Savings: Up to 32% reduction in energy losses vs IE1

  • Operating Temperature: -20°C to +40°C

  • Insulation Class: Class H with Class B temperature rise

  • Starting Method: Direct-on-line capable

Features

  • Premium Energy Efficiency - IE3 compliance with up to 95% efficiency rating

  • Cast Iron Construction - Maximum durability for industrial environments

  • IP65 Protection - Complete dust and water jet protection

  • Vacuum Pressure Impregnation - Enhanced winding protection and longevity

  • Class H Insulation System - Superior thermal protection

  • Purge Greasing System - Easy maintenance from frame 160 and above

  • Built-in Thermistors - Temperature monitoring from frame 160+

  • SABS Approved - Compliant with SANS IEC 60034-2-1 standards

  • VSD Compatible - Suitable for variable speed drive applications

  • 2-Year Warranty - Extendable to 3 years with T4 VSDs

Applications

  • Water Treatment

  • HVAC Systems

  • Mining & Heavy Industry

  • Agricultural

  • Commercial Buildings



0.00 ZK 0.00 ZK Excl. VAT

​

(0.00 ZK / Units)
  • Pole/Speed
  • Mounting
  • Voltage

This combination does not exist.

  • 1 YEAR WARRANTY ON MANUFACTURING DEFECTS, IF APPLICABLE
  • A 15% HANDLING CHARGE WILL BE APPLIED TO ALL RETURNED ITEMS
  • RETURN SHIPPING WILL BE AT THE CUSTOMER'S EXPENSE
  • ONLY ITEMS PURCHASED WITHIN 30 DAYS ARE ELIGIBLE FOR RETURN AND RECEIVED IN ORIGINAL PACKING CONDITION
  • ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
  • SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
  • DELIVERY SCHEDULES WILL BE CONFIRMED UPON RECEIPT OF ORDER
  • ALL INFORMATIONS,DESCRIPTIONS,SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UDPATED WITHOUT PRIOR NOTCE

Contact Us

Technical Specifications

Brand
Pole/Speed 2 Pole, 4 Pole, 6 Pole
Others
Mounting Foot Mounted, Flange Mounted
Voltage 525V, 415V, 230V
