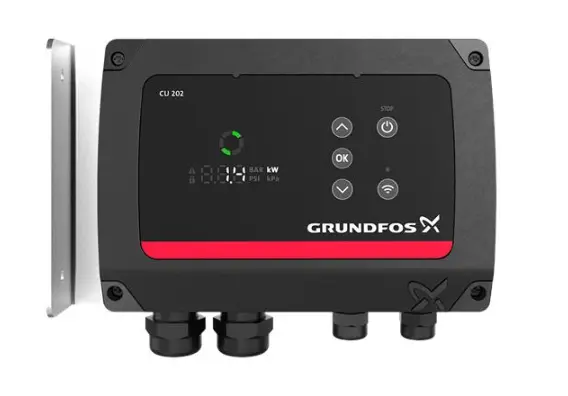

Grundfos CU 202 SQFlex control unit suitable for Solar Pumps
CU 202 is designed for monitoring and controlling SQFlex submersible pumps in solar applications.
The new generation of SQ control units
Grundfos CU 202 and CU 302 offer cutting-edge technology to make monitoring and control of pumps easier for you via Bluetooth and WiFi connection.

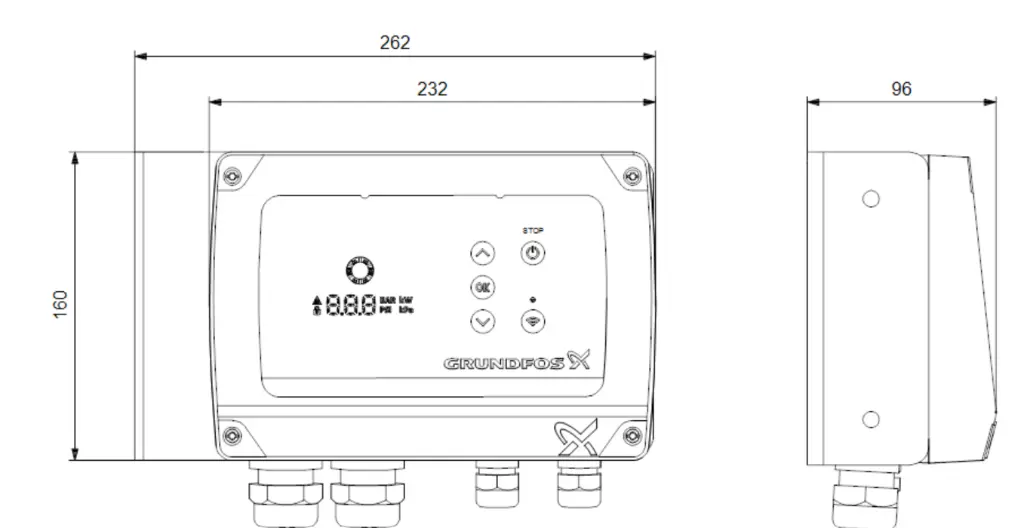

CU 202 is a combined status, control and communication
unit designed for the SQFlex system. It can be connected
to a level switch and is designed for SQFlex power range
up to 2500 W and maximum 12.5 A.

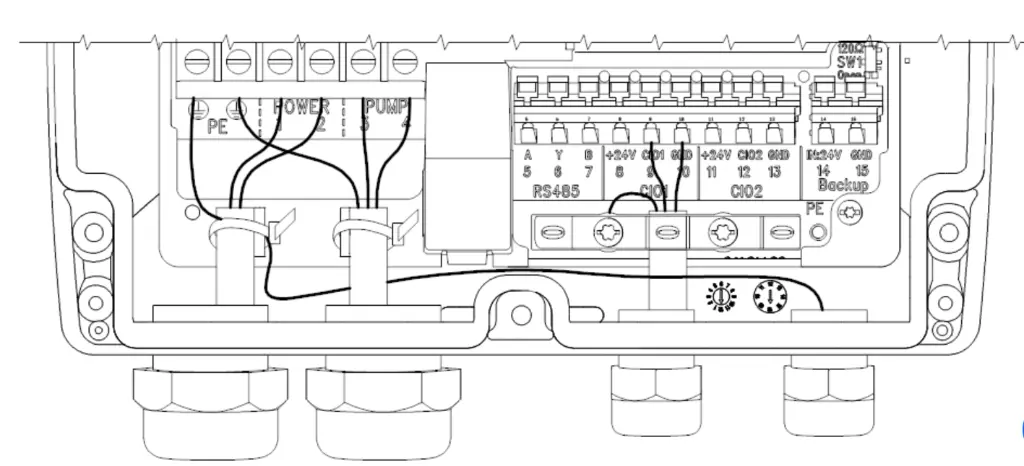

CU 202 incorporates cable entries for the following
connections:
• power supply
• pump
• configurable IO ports
TM022217
TM022437
• protective earth.
The communication between CU 202 and the
pump is ensured through the power supply cable.
This is called mains-borne signaling (or power line
communication), which does not require extra cables
between CU 202 and the pump.
CU 202 ensures system monitoring and alarm indication.
The operation can be monitored through the following
indications:
• water reservoir full (level switch)
• pump running
• input power.
CU 202 indicates a number of alarms, including:
• dry running
• service needed:
- no contact to the pump
- overvoltage
- overtemperature
- overload
Electrical data
Power input P1 25 W
Rated voltage AC 1 x 90-240 V
Rated voltage DC 30-300 V
Maximum current consumption12.5 A
Enclosure class (IEC 34-5) IP55
Back-up fuse required 16 A
IEC code battery designations CR2032
Battery chemistry LITHIUM
Installation
Range of ambient temperature -20 .. 50 °C
Relative humidity 5-95 %
Cabinet mounting Angle plate mounting
Earth connection PE
Applications:
• Villages, schools, hospitals, single-family houses
• Farms and greenhouses
• Game parks and game farms
• Conservation areas
Features and benefits:
• Energy supply from solar modules, wind turbine, generator, or batteries
• Maximum power point tracking, MPPT
• Simple installation
• Reliable water supply
• Maintenance-free
• Expansion possibilities
• Cost-efficient pumping
• Dry-running protection
