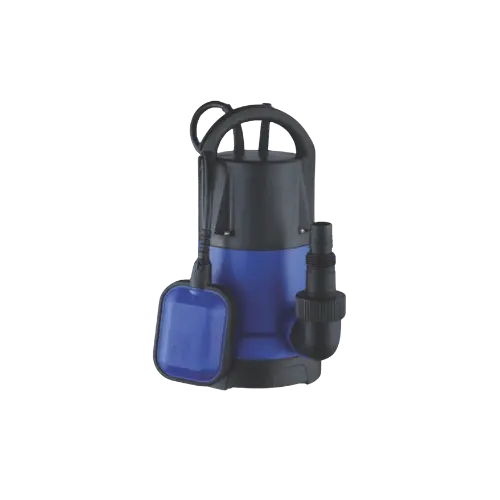

CRI Pumps Waste Water Pump - MP-T550 - 0.55 kW
Light waste water pumps are designed for pumping waste water from residential and small commercial buildings. These motors are of dry type with E class insulation for reliable service and pumps are offered with different type of impellers such as vortex, single channel enclosed, single channel semi open, multi-channel enclosed etc. These pumps are available in both single phase and three phase power supply for continuous duty. Double face mechanical seals ensure reliability and trouble-free service for long life. Few models are supplied with fully stainless steel construction.

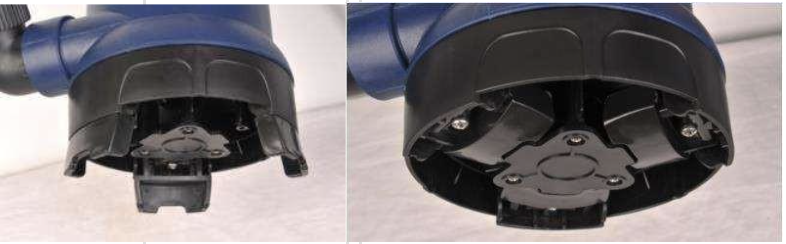

MP series can be used for both Sewage/Drainage Application by flipping the legs
General Specifications
| Maximum Flow | upto 12m³/h |
| Head | upto 10.5m |
| Speed | 2900 RPM |
| Impeller Type | Semi open Impeller |
| Outlet Size | upto 40mm |
| Power | upto 1.1kW |
| Liquid Temperature | upto 40°C |
| Max Solid Size | upto 25mm |
| Shaft Seal | Mechanical Seal |
| Material of Construction (MOC) | Engineering Plastic |
| Bearing Lubrication | Grease |
| Maximum Immersion Depth | 5m |
| Maximum Working Pressure | upto 1bar |
Features
- Heavy duty bearings, compact and rigid design
- Rust free engineering thermoplastic
Application
- Draining sewage water from hotels, houses, commercial buildings etc.
- Pumping sewage water from stock farm and manhole sewer
- 1 YEAR WARRANTY ON MANUFACTURING DEFECTS, IF APPLICABLE
- A 15% HANDLING CHARGE WILL BE APPLIED TO ALL RETURNED ITEMS
- RETURN SHIPPING WILL BE AT THE CUSTOMER'S EXPENSE
- ONLY ITEMS PURCHASED WITHIN 30 DAYS ARE ELIGIBLE FOR RETURN AND RECEIVED IN ORIGINAL PACKING CONDITION
- ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
- SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
- DELIVERY SCHEDULES WILL BE CONFIRMED UPON RECEIPT OF ORDER
- ALL INFORMATIONS,DESCRIPTIONS,SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UDPATED WITHOUT PRIOR NOTCE
Technical Specifications
| Model | |
|---|---|
| Model | MP-T550 |
| Power Rating | |
|---|---|
| kW | 0.55 kW |
| Brand | |
|---|---|
| Brand | CRI |
| Others | |
|---|---|
| Max Head m | 7 m |
| Max Flow Rate m3/h | 10 m3/h |
| Phase | Single 220v |
| Max Immersible | 5 m |
| Solid Particles | 25 mm |
