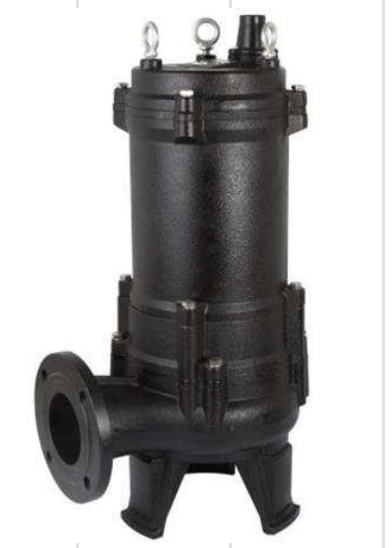

CRI Pumps Sewage Pump - SM-1E-30-FT - 3.00 kW
Light waste water pumps are designed for pumping waste water from residential and small commercial buildings. These motors are of dry type with E or F class insulation for reliable service and pumps are offered with different type of impellers such as vortex, single channel enclosed, single channel semi open, multi-channel enclosed etc. These pumps are available in both single phase and three phase power supply for continuous duty. Double face mechanical seals ensure reliability and trouble-free service for long life. Few models are supplied with fully stainless steel
General Specifications
| Maximum Flow | upto 180m³/h |
| Head | upto 62m |
| Speed | 2900RPM |
| Impeller Type | Enclosed / Semi open impeller |
| Outlet Size | upto 150mm |
| Power | upto 15kW |
| Liquid Temperature | upto 40°C |
| Max Solid Size | upto 19mm |
| Shaft Seal | Mechanical seal |
| Material of Construction (MOC) | Cast Iron & Stainless Steel |
| Bearing Lubrication | Grease |
| Maximum Immersion Depth | 10m |
| Maximum Working Pressure | upto 5bar |
Features
- Wide hydraulic ranges
- Heavy duty bearings for long life
- Dual mechanical seal
- Stainless steel motor body
Application
- Dewatering
- Light sewage handling
- Waste water transfer
- Pumping water from pit, trench and basin
- Flood control
- 1 YEAR WARRANTY ON MANUFACTURING DEFECTS, IF APPLICABLE
- A 15% HANDLING CHARGE WILL BE APPLIED TO ALL RETURNED ITEMS
- RETURN SHIPPING WILL BE AT THE CUSTOMER'S EXPENSE
- ONLY ITEMS PURCHASED WITHIN 30 DAYS ARE ELIGIBLE FOR RETURN AND RECEIVED IN ORIGINAL PACKING CONDITION
- ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
- SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
- DELIVERY SCHEDULES WILL BE CONFIRMED UPON RECEIPT OF ORDER
- ALL INFORMATIONS,DESCRIPTIONS,SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UDPATED WITHOUT PRIOR NOTCE
Technical Specifications
| Model | |
|---|---|
| Model | SM-1E-30-FT |
| Power Rating | |
|---|---|
| kW | 3.00 kW |
| Brand | |
|---|---|
| Brand | CRI |
| Others | |
|---|---|
| Outlet Size | 3" |
| Phase | Three 400v |
