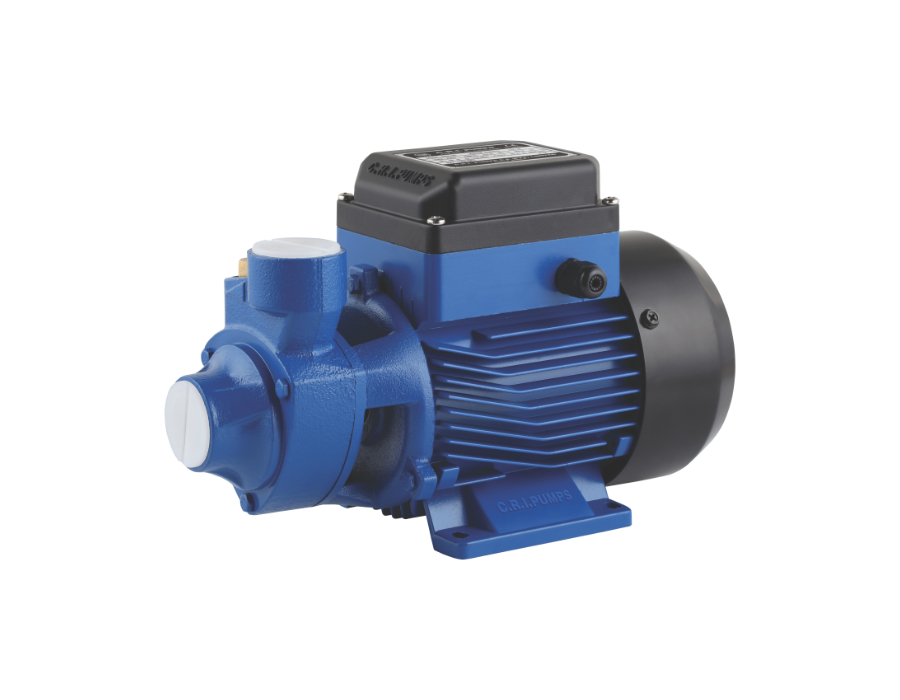

CRI Pumps Peripheral Pump - PEm–3NE - 0.37 kW
C.R.I. Peripheral pumps are non selfpriming monoblock type supplied with peripheral impeller for higher head requirement. These pumps are rigid in construction and compact design. It is highly suitable for pumping clear water from sump and shallow wells. It’s brass impeller and high precision mechanical seal ensures durability and stainless steel insert eleminates jamming of impeller over a period kept idle. All single phase pumps are thermally protected.
Technical Specifications
| Pump Model | PEM-3NE |
| Motor Power | 0.37 kW |
| Version | Single phase, 230V, 50Hz, A.C. Supply |
| Type of Duty | S1 Continuous |
| Degree of Protection | IP 54 |
| Class of Insulation | B |
| Rated & Max. Flow Rate | 0.5 & 1.5m³/h |
| Rated & Max.Head | 25 & 34m |
| Max.Suction Lift | 6m |
| Sealing Type | Mechanical Seal |
| Max.Liquid Temperature | 35°C |
| Max.Ambient Temperature | 40°C |
| Max.Operating Pressure | 3.4 bar |
| Motor Winding | Copper |
| Suction x Delivery Size | 1 "x 1 " |
| Carton box contains | 1 x Pump & 1 x Pressure switch |
Features
- Silent operation
- Sturdy and compact design
- Thermal protection
Applications
- Residential
- Garden
- Pressure boosting
- Landscaping
- Sprinkler systems
- Fountains
- Domestic RO systems
Download catalogue Peripheral Pump
Download catalogue complete range
- ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
- SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
- ALL INFORMATIONS, DESCRIPTIONS, SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UPDATED WITHOUT PRIOR NOTCE
Technical Specifications
| Model | |
|---|---|
| Model | PEm–3NE |
| Power Rating | |
|---|---|
| kW | 0.37 kW |
| Brand | |
|---|---|
| Brand | CRI |
| Others | |
|---|---|
| Phase | Single 220v |
| Outlet Size | 1” x 1” |
