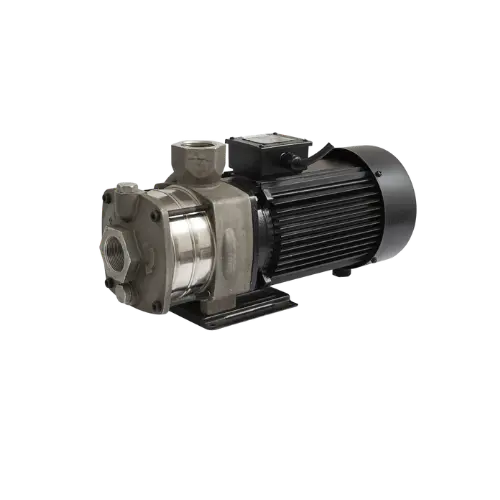

CRI Pumps Multistage Centrifugal Pump - MHL-8/03M - 1.10 kW
C.R.I “MH series” horizontal multistage pumps are end suction and top discharge type supplied with radial flow impeller for higher head requirement. These pumps are centrifugal monoblock type available in both single phase and three phase supply. Most of the wetted parts in the pumps are made up of corrosive resistant stainless steel material for durability. All single phase pumps are thermally protected.
General Specifications
| Power Range(kW) | 0.22 to 2.2kW |
| Speed | 2900 rpm |
| Versions | Single phase – 230V, 50Hz, A.C. Supply, Three phase – 380-415V, 50Hz A.C. supply |
| Duty | S1 Continuous |
| Degree of Protection | IP 54 |
| Class of Insulation | B/F |
| Maximum Discharge | Upto 14 m³/h |
| Maximum Head | Upto 57m |
| Shaft seal | Mechanical seal |
| Max.Liquid Temperature | 70˚C |
| Max.Ambient Temperature | 40˚C |
| Max.Opearting Pressure | 5.5 bar |
| Flange Standard | Manufacturer standard |
| Outlet size in mm | DN25 to DN40 |
Features
- High efficiency
- Stainless steel impeller and casings
- ED coated cast iron parts
- Thermally protected single phase motors
- Different materials of construction
Application
- Pressure boosting system
- RO System
- Utility water supply in residences, villas and industries
- Industrial washing and cleaning system
- Landscaping and Gardens
- 1 YEAR WARRANTY ON MANUFACTURING DEFECTS, IF APPLICABLE
- A 15% HANDLING CHARGE WILL BE APPLIED TO ALL RETURNED ITEMS
- RETURN SHIPPING WILL BE AT THE CUSTOMER'S EXPENSE
- ONLY ITEMS PURCHASED WITHIN 30 DAYS ARE ELIGIBLE FOR RETURN AND RECEIVED IN ORIGINAL PACKING CONDITION
- ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
- SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
- DELIVERY SCHEDULES WILL BE CONFIRMED UPON RECEIPT OF ORDER
- ALL INFORMATIONS,DESCRIPTIONS,SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UDPATED WITHOUT PRIOR NOTCE
Technical Specifications
| Model | |
|---|---|
| Model | MHL-8/03M |
| Power Rating | |
|---|---|
| kW | 1.10 kW |
| Brand | |
|---|---|
| Brand | CRI |
| Others | |
|---|---|
| Outlet Size | 1 ½ x 1 ¼ |
| Phase | Single 220v |
| Impellers | 3 |
