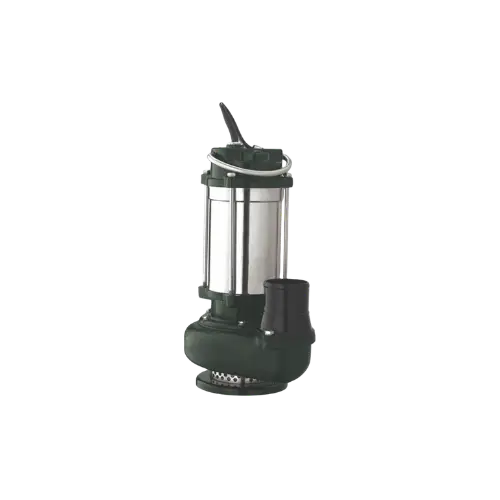

CRI Pumps Light Waste Waterl Pump - DL - 2L - 15DS - 1.50 kW + Float Switch
Light waste water pumps are designed for pumping waste water from residential and small commercial buildings. These motors are of dry type with E or F class insulation for reliable service and pumps are offered with different type of impellers such as vortex, single channel enclosed, single channel semi open, multi-channel enclosed etc. These pumps are available in both single phase and three phase power supply for continuous duty. Double face mechanical seals ensure reliability and trouble-free service for long life. Few models are supplied with fully stainless steel
General Specifications
| Maximum Flow | upto 180m³/h |
| Head | upto 56m |
| Speed | 2900 RPM |
| Impeller Type | Enclosed / Semi open Impeller |
| Outlet Size | upto 150mm |
| Power | upto 15kW |
| Liquid Temperature | upto 40°C |
| Max Solid Size | upto 19mm |
| Shaft Seal | Mechanical Seal |
| Material of Construction (MOC) | Cast Iron & Stainless Steel |
| Bearing Lubrication | Grease |
| Maximum Immersion Depth | 10m |
| Maximum Working Pressure | upto 5bar |
Features
Wide hydraulic ranges
Heavy duty bearings for long life
Dual mechanical seal
Stainless steel motor body
Application
Dewatering
Light sewage handling
Waste water transfer
Pumping water from pit, trench and basin
Flood control
- 1 YEAR WARRANTY ON MANUFACTURING DEFECTS, IF APPLICABLE
- A 15% HANDLING CHARGE WILL BE APPLIED TO ALL RETURNED ITEMS
- RETURN SHIPPING WILL BE AT THE CUSTOMER'S EXPENSE
- ONLY ITEMS PURCHASED WITHIN 30 DAYS ARE ELIGIBLE FOR RETURN AND RECEIVED IN ORIGINAL PACKING CONDITION
- ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
- SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
- DELIVERY SCHEDULES WILL BE CONFIRMED UPON RECEIPT OF ORDER
- ALL INFORMATIONS,DESCRIPTIONS,SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UDPATED WITHOUT PRIOR NOTCE
Technical Specifications
| Model | |
|---|---|
| Model | DL - 2L - 15DS |
| Power Rating | |
|---|---|
| kW | 1.50 kW |
| Brand | |
|---|---|
| Brand | CRI |
| Others | |
|---|---|
| Outlet Size | 50 mm |
| Impeller Type / MOC | Closed Multi Channel / CI |
| Phase | Single 220v |
