CRI Pumps I Prez Booster System (VFD & Float Switch Option) - i Prez-07N - 0.75 kW

CRI Pumps I Prez Booster System (VFD & Float Switch Option) - i Prez-07N - 0.75 kW

https://www.t4pumps.com/web/image/product.template/5941/image_1920?unique=8108ad7
(1 review)

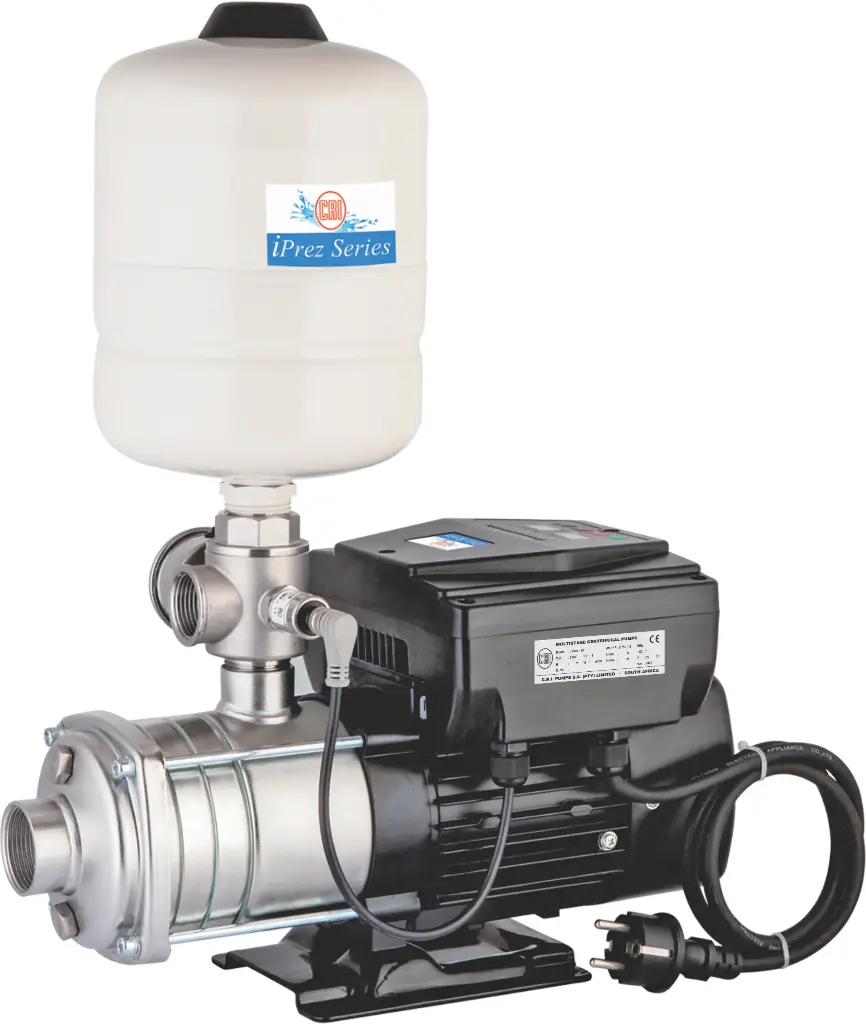

C.R.I i-Prez Series are basically domestic pressure boosting system with built-in variable speed for constant pressure in pipe line. The pressure transducer in this system monitors un-interrupted pressurized water supply at any time. i-Prez also protects the system from dry run, over loading, unbalanced voltages, short circuit etc. The system comprises of Horizontal Multistage Pump, VSD, 5 Way connector with built in NRV, pressure tank, Pressure gauge & pressure transducer.


General Specifications


Power Range(kW)0.75kW – 2.2kW
Speed2900 rpm
VersionsInput voltage : Single Phase 220V Output voltage : Three Phase 220V
DutyS1 Continuous
Degree of ProtectionIP 54
Class of InsulationB/F
Maximum Discharge Upto11 m³/h
Maximum Head Upto 68m
Shaft SealMechanical seal
Max.Liquid Temperature70˚C
Max.Ambient Temperature40˚C
Max.Opearting Pressure9 bar
Flange StandardManufacturer standard
Outlet Size in mmDN25 to DN40


Features


  • High efficiency
  • Stainless steel wetted parts
  • Automatic operation
  • Soft start ensures smooth operation and increase the life of pump set
  • Plug & play type


Application


  • Pressure boosting system
  • Utility water supply in residences, villas and industries
  • Car Washer
  • Gardening


This product is no longer available.

  • 1 YEAR WARRANTY ON MANUFACTURING DEFECTS, IF APPLICABLE
  • A 15% HANDLING CHARGE WILL BE APPLIED TO ALL RETURNED ITEMS
  • RETURN SHIPPING WILL BE AT THE CUSTOMER'S EXPENSE
  • ONLY ITEMS PURCHASED WITHIN 30 DAYS ARE ELIGIBLE FOR RETURN AND RECEIVED IN ORIGINAL PACKING CONDITION
  • ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
  • SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
  • DELIVERY SCHEDULES WILL BE CONFIRMED UPON RECEIPT OF ORDER
  • ALL INFORMATIONS,DESCRIPTIONS,SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UDPATED WITHOUT PRIOR NOTCE

Contact Us

Complete Catalogue:

Technical Specifications

Model
Model i Prez-07N
Power Rating
kW 0.75 kW
Brand
Brand CRI
