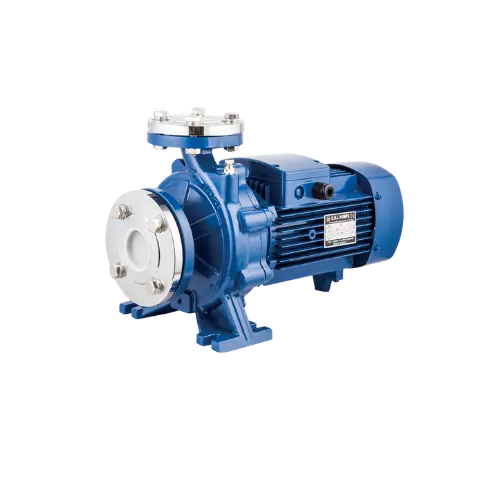

CRI Pumps Close Coupled Centrifugal Pump - CTC-40-200 - 7.50 kW
C.R.I. CT- Series pumps are horizontal single stage centrifugal monoblock type supplied with radial flow impeller for higher head and flow requirements. These pumps are rigid in construction and compact design. Centrifugal pumps are powered by a totally enclosed fan cooled motor. Monoblock construction eliminates loss of energy while transmitting the energy from the motor to pump. These pumps are available in both single phase and three phase power supply. Pump’s volute chamber and impeller are carefully designed to give the best hydraulic efficiency and suction lift characteristics. The back pull out design facilitates ease of maintenance. Single phase pumps are thermally protected. Few models are supplied with stainless steel construction.
General Specifications
| Power Range( kW) | 0.37 kW-2.2 kW |
| Speed | 2900 rpm |
| Versions | Single phase – 230V, 50Hz, A.C. Three phase – 380-415V, 50Hz A.C. supply |
| Type of Duty | S1 Continuous Duty |
| Degree of Protection | IP 44 / IP 54 |
| Class of Insulation | B |
| Maximum Discharge | Upto 42 m³/h |
| Maximum Head | Upto 52.5m |
| Max.Suction Lift | Upto 7 m |
| Sealing Type | Mechanical Seal |
| Max.Liquid Temperature | 30°C |
| Max.Ambient Temperature | 40°C |
| Max.Operating Pressure | 5.2bar |
| Flange Standard | Manufacturer Standard |
| Suction Flange Size in mm | 25, 32, 50, & 65 |
| Delivery Flange Size in mm | 25, 40 & 50 |
Features
- High efficiency
- Compact and rigid construction
- Back pull out design
- Single phase pumps are thermally protected
Application
- Residence
- Small farms
- Utility application in industries
- Cooling system
- Washing systems
- Pressure boosting system
- 1 YEAR WARRANTY ON MANUFACTURING DEFECTS, IF APPLICABLE
- A 15% HANDLING CHARGE WILL BE APPLIED TO ALL RETURNED ITEMS
- RETURN SHIPPING WILL BE AT THE CUSTOMER'S EXPENSE
- ONLY ITEMS PURCHASED WITHIN 30 DAYS ARE ELIGIBLE FOR RETURN AND RECEIVED IN ORIGINAL PACKING CONDITION
- ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
- SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
- DELIVERY SCHEDULES WILL BE CONFIRMED UPON RECEIPT OF ORDER
- ALL INFORMATIONS,DESCRIPTIONS,SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UDPATED WITHOUT PRIOR NOTCE
Technical Specifications
| Model | |
|---|---|
| Model | CTC-40-200 |
| Power Rating | |
|---|---|
| kW | 7.50 kW |
| Brand | |
|---|---|
| Brand | CRI |
| Others | |
|---|---|
| Phase | Three 220v |
| Suction x Delivery (mm) | 65 mm x 40 mm |
