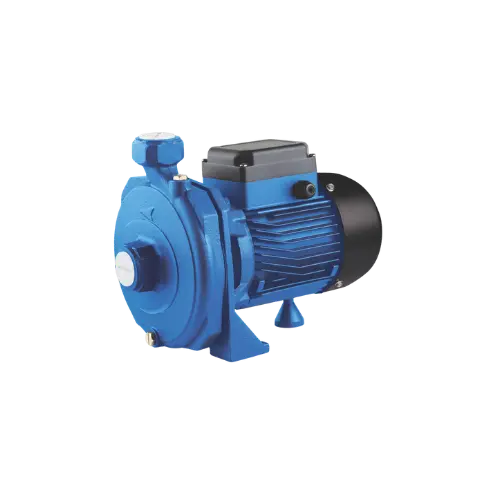

CRI Pumps Centrifugal Pump - CTB-6/11M - 1.10 kW

CRI Pumps Centrifugal Pump - CTB-6/11M - 1.10 kW

(0 review)

C.R.I. CT- Series pumps are horizontal single stage centrifugal monoblock type supplied with radial flow impeller for higher head and flow requirements. These pumps are rigid in construction and compact design. Centrifugal pumps are powered by a totally enclosed fan cooled motor. Monoblock construction eliminates loss of energy while transmitting the energy from the motor to pump. These pumps are available in both single phase and three phase power supply. Pump’s volute chamber and impeller are carefully designed to give the best hydraulic efficiency and suction lift characteristics. The back pull out design facilitates ease of maintenance. Single phase pumps are thermally protected. Few models are supplied with stainless steel construction.


General Specifications


Power Range( kW)0.37 kW-2.2 kW
Speed2900 rpm
VersionsSingle phase – 230V, 50Hz, A.C. Three phase – 380-415V, 50Hz A.C. supply
Type of DutyS1 Continuous Duty
Degree of ProtectionIP 44 / IP 54
Class of InsulationB
Maximum DischargeUpto 42 m³/h
Maximum HeadUpto 52.5m
Max.Suction LiftUpto 7 m
Sealing TypeMechanical Seal
Max.Liquid Temperature30°C
Max.Ambient Temperature40°C
Max.Operating Pressure5.2bar
Flange StandardManufacturer Standard
Suction Flange Size in mm25, 32, 50, & 65
Delivery Flange Size in mm25, 40 & 50


Features


  • High efficiency
  • Compact and rigid construction
  • Back pull out design
  • Single phase pumps are thermally protected


Application


  • Residence
  • Small farms
  • Utility application in industries
  • Cooling system
  • Washing systems
  • Pressure boosting system


  CTB-6/11M Curve

0.00 ZK 0.00 ZK Excl. VAT

  • Brand
  • Model
  • kW
  • Pump Size
  • Phase
Add to cart
Buy now
Add to wishlist


  • ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
  • SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
  • ALL INFORMATIONS, DESCRIPTIONS, SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UPDATED WITHOUT PRIOR NOTCE

Contact Us

Technical Specifications

Model
Model CTB-6/11M
Power Rating
kW 1.10 kW
Brand
Brand CRI
Others
Pump Size 1 X 1
Phase Single 220v
