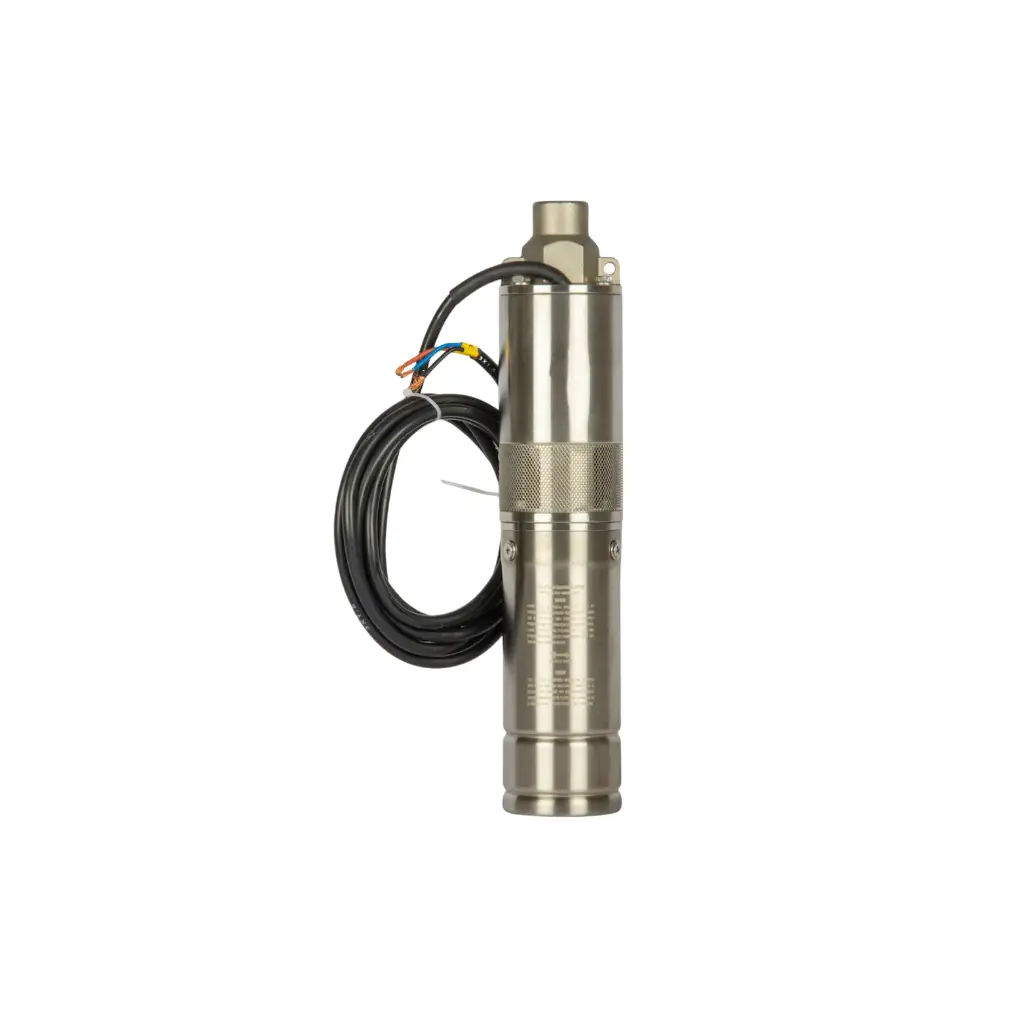

CRI Pumps 3″ (Inch) Solar DC Submersible Pump - G3R-F/250
The C.R.I 3″ D.C Solar submersible pumps are meticulously designed for optimal performance in solar applications. Equipped with screw-type rotors and advanced DC brushless motors, these pumps ensure exceptional efficiency and longevity. They are available in a comprehensive range of power and voltage ratings to accommodate diverse operational requirements.
General Specifications
Power Range | 250 W |
Voltage | 24V, DC |
Speed | 3300 -3600 rpm |
Degree of Protection | IP68 |
Maximum Head | 55 m |
Maximum Flow | 0.8m ³/h |
Type of Duty | S1 Continuous Duty |
Outlet Size | ¾” |
Features
- Eco friendly
- Higher efficiency
- Less maintenance
- More longevity
- Powered by brushless DC Motor
Application
- Residential
- Small farms
- Livestock watering
- Golf course
- 1 YEAR WARRANTY ON MANUFACTURING DEFECTS, IF APPLICABLE
- A 15% HANDLING CHARGE WILL BE APPLIED TO ALL RETURNED ITEMS
- RETURN SHIPPING WILL BE AT THE CUSTOMER'S EXPENSE
- ONLY ITEMS PURCHASED WITHIN 30 DAYS ARE ELIGIBLE FOR RETURN AND RECEIVED IN ORIGINAL PACKING CONDITION
- ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
- SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
- DELIVERY SCHEDULES WILL BE CONFIRMED UPON RECEIPT OF ORDER
- ALL INFORMATIONS,DESCRIPTIONS,SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UDPATED WITHOUT PRIOR NOTCE
Technical Specifications
| Model | |
|---|---|
| Model | G3R-F/250 |
| Others | |
|---|---|
| Type of Pump and Diameter | 3" Screw |
| Power (W) / Voltage (V) | 250 / 24 |
| Max Head m | 55 m |
| Max Flow Rate m3/h | 0.0 m3/h |
| Outlet Size | ¾" |
| Solar Panel Selection | 340W, 38Vmp, - 1 qty |
