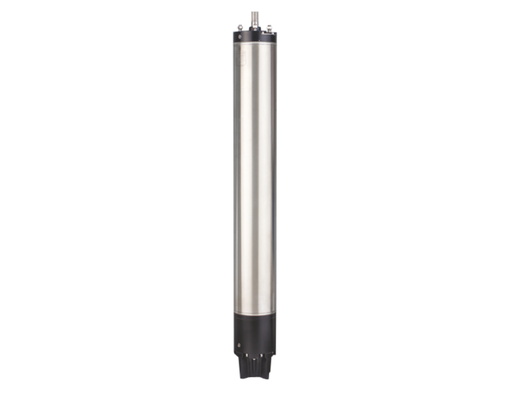

CRI Pumps 10″ (Inch) Water Filled Rewindable Submersible Motors - W10B-A85 - 185.00 kW - 400V

CRI Pumps 10″ (Inch) Water Filled Rewindable Submersible Motors - W10B-A85 - 185.00 kW - 400V

(0 review)

C.R.I. “W series” motors are deep well / bore hole rewindable submersible type, pre-filled with water, which acts as coolant and lubricant. These motors are available in three phase power supply and suitable for both normal & high temperature applications. Rotors are supported with bush and thrust bearings to withstand maximum axial and radial thrust loads. All mounting dimensions are in accordance with NEMA standards.


General Specifications


Nominal Diameter10″
Series Water Filled Rewindable Submersible Motors
Power Range kWThree Phase : 81 – 185kW
Speed2900 rpm
Versions Three Phase : 380V – 415V, 525V, 50Hz
Method of StartingDirect On Line (DOL), Star Delta (SD)
Maximum Down Thrust Load60000N
Type of DutyS1 (Continuous)
Degree of ProtectionIP 68
Class of InsulationY
Max.Temperature of LiquidStandard – 30˚C , High Temperature – 50˚C
Minimum Cooling Flow Along the Motor0.5 m/sec
Starts per Hour12 Times
Available M.O.CType b, S, T


Features


High efficiency

Water lubricated rewindable motor

Corrosion resistant stainless steel motor body

Extremely hardwearing and water lubricated bearings

Special design for hot water

Can be easily dismantled and repaired


Application


Water supply

Industries

Agriculture

Commercial buildings

Pressure boosting

Water transfer

Sprinkler and pivot irrigation system

Construction & mining De-watering

Fountain


 10″ Water Filled Motor W10B Data Sheet

0.00 ZK 0.00 ZK Excl. VAT

  • kW
  • Model
  • Brand
  • Phase
Add to cart
Buy now
Add to wishlist


  • ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
  • SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
  • ALL INFORMATIONS, DESCRIPTIONS, SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UPDATED WITHOUT PRIOR NOTCE

Contact Us

Technical Specifications

Model
Model W10B-A85
Power Rating
kW 185.00 kW
Brand
Brand CRI
Others
Phase Three 400v
