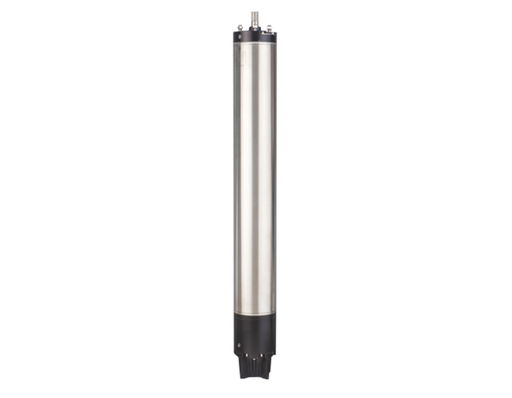

CRI Pumps 10″ (Inch) Water Filled Rewindable Submersible Motors - W10B-A10 - 110.00 kW - 400V
C.R.I. “W series” motors are deep well / bore hole rewindable submersible type, pre-filled with water, which acts as coolant and lubricant. These motors are available in three phase power supply and suitable for both normal & high temperature applications. Rotors are supported with bush and thrust bearings to withstand maximum axial and radial thrust loads. All mounting dimensions are in accordance with NEMA standards.

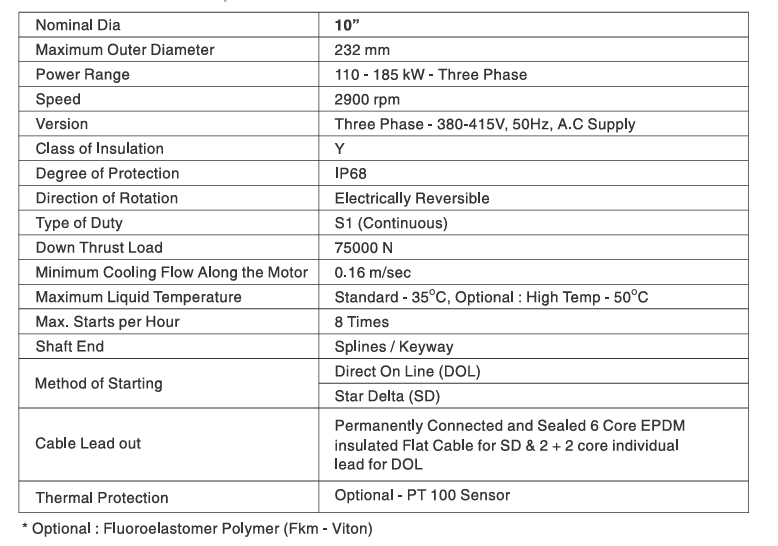

General Specifications

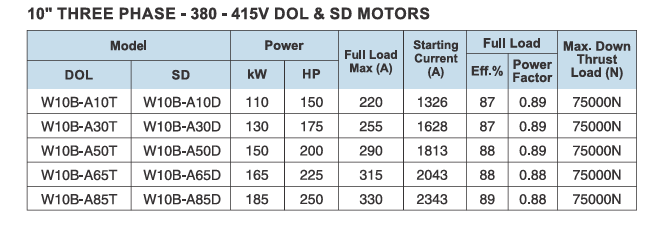

Current Data
Features
- High efficiency
- Water lubricated rewindable motor
- Corrosion resistant stainless steel motor body
- Extremely hardwearing and water lubricated bearings
- Special design for hot water
- Can be easily dismantled and repaired
Applications
- Water supply
- Industries
- Agriculture
- Commercial buildings
- Pressure boosting
- Water transfer
- Sprinkler and pivot irrigation system
- Construction & mining De-watering
- Fountain
- 1 YEAR WARRANTY ON MANUFACTURING DEFECTS, IF APPLICABLE
- A 15% HANDLING CHARGE WILL BE APPLIED TO ALL RETURNED ITEMS
- RETURN SHIPPING WILL BE AT THE CUSTOMER'S EXPENSE
- ONLY ITEMS PURCHASED WITHIN 30 DAYS ARE ELIGIBLE FOR RETURN AND RECEIVED IN ORIGINAL PACKING CONDITION
- ALL PRODUCTS ARE SUBJECT TO PRIOR SALE - STOCK NOT HELD
- SUBJECT TO OUR GENERAL TERMS AND CONDITIONS OF SALE
- DELIVERY SCHEDULES WILL BE CONFIRMED UPON RECEIPT OF ORDER
- ALL INFORMATIONS,DESCRIPTIONS,SPECIFICATIONS,IMAGES, AND TERMS ARE SUBJECT TO BE UDPATED WITHOUT PRIOR NOTCE
Technical Specifications
| Model | |
|---|---|
| Model | W10B-A10 |
| Power Rating | |
|---|---|
| kW | 110.00 kW |
| Brand | |
|---|---|
| Brand | CRI |
| Others | |
|---|---|
| Phase | Three 400v |
