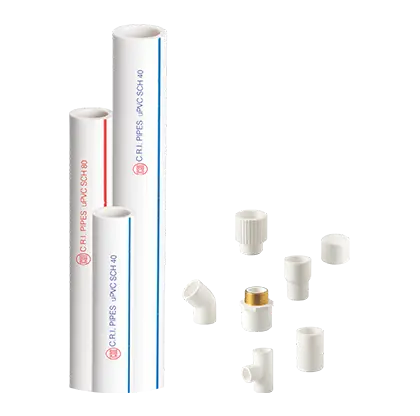

C.R.I. uPVC Borehole Column Pipe 3” Standard
Description
C.R.I. uPVC pipes are specially designed for submersible pumps and are capable of handling both internal hydrostatic pressure as well as high tensile load caused by the pump weight, cable weight & column water pressure & weight. PBTS (Polymer Bond Thread Sink) locking system is provided to avoid the loosening of coupler during the removal of pipes, a special polymer is injected into the threads via the coupler. The polymer forms a permanent bond between the coupler and pipe, thus nullifying any possibility of coupler loosening. Special rubber seal is provided at the end of the threads to ensure 100% leak proof joints even at high pressure. These pipes come in 3m standard length and are of light weight ensuring easy handling, storage & installation.
Specification
Nominal Diameter | 1″, 1¼”, 1½ “, 2″, 2½”, 3″, 4″, 5″ & 6″ |
Types of Pipes | Elite, Medium, Standard ,Heavy & Super Heavy |
Ultimate Breaking Load | Elite upto 2350 kgs Medium upto 7500 kgs Medium upto 7500 kgs Standard upto 16500 kgs Heavy upto 40000 kgs Super Heavy upto 32000 kgs |
Maximum Permissible Hydrostatic Pressure | Elite upto 15 kg/cm2 Medium upto 21 kg/cm2 Standard upto 30 kg/cm2 Heavy upto 35 kg/cm2 Super Heavy – upto 35 kg/cm2 |
Maximum Installation Depth | Elite upto 150 m Medium upto 210 m Standard upto 300 m Heavy upto 350 m Super Heavy upto 350 m |
Adaptors (SS & CI) | 1″ to 6″ |
Benefits uPVC Vs MS/GI Pipe
| C.R.I. Upvc Column Pipe | Mild /Galvanised steel pipe |
|---|---|
| Friction loss is low by 10% to 30% | Friction loss is high |
| Light weight Easy to install | Heavy weight requires tedious efforts during installation, transportation and removal |
| Doesn't corroded & rust free | Prone to corrosion & rust formation |
| Special O-rings/seals are provided with the thread to avoid 100% leak proof | No O-rings /seals and not leak proof |
Specially designed square threads | Normal BSP threads |
Features
- Rigid construction & longer life span
- Can be used for potable water supply.
- Specially designed square threads are capable of withstanding heavy load and are corrosion free.
- PBTS locking system: (Polymer Bond Thread Sink) To avoid the loosening of coupler during the removal of pipes, a special polymer is injected into the threads via the coupler. The polymer forms a permanent bond between the coupler and pipe, thus nullifying any possibility of coupler loosening.
- Special rubber seal is provided at the end of threads to ensure 100% leak proof joints even at high pressure.
- A special rubber (EPDM - High strand ) ring is provided in the coupling between the two pipes to absorb the vibration caused due to high pump pressure.
- Internal surface of these pipes are very smooth, resulting in very low head loss due to friction and increases water discharge up to 30%, compared with traditional G.I. pipes, thereby saving power.
- uPVC column pipes are resistant to chemical reactions when used in acidic or alkaline waters assuring long life.
- Can handle water with maximum temperature up to 45°C.
- These pipes come in 3m Standard length and are of light weight ensuring easy handling, storage and installation.
