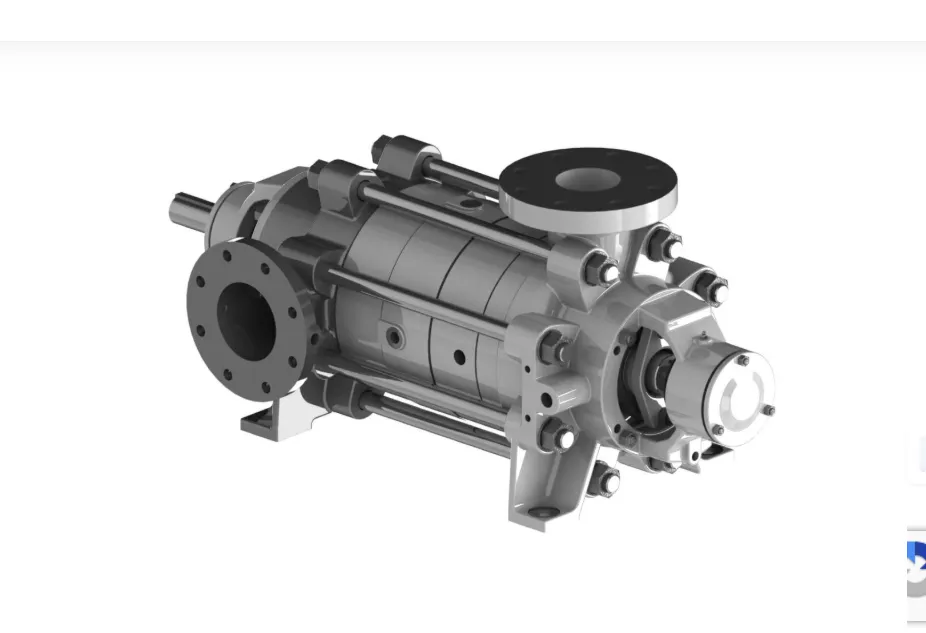

Kirloskar RKB series is a horizontal multistage centrifugal pump. RKB/RKBF/RKBK horizontal multistage centrifugal pumps are side suction pumps with vertical delivery and diffuser type casing. RKB horizontal multistage centrifugal pump series impellers are of radial flow type provided with balancing holes. RKB/RKBF/RKBK horizontal multistage centrifugal pumps have standard grease lubrication, suitable for coupling with electric motors.
General Specifications
| Feature | Specification |
| Model Name | Kirloskar RKB 125/30 |
| Pump Type | Horizontal Multistage Centrifugal |
| Number of Stages | 7 |
| Delivery Size | Up to 250 mm |
| Capacity | Up to 850 m³/hr |
| Head | Up to 850 metres |
| Working Pressure | 40 to 64 bar |
| Temperature Range | -40 °C to 140 °C |
Features
- Gland packed/Mechanical seal
- Ring section diffuser casing
- Stuffing box cooling for high temperature applications
- Available in vertical configuration
- Optional orientation available for suction branch
- Hydraulic thrust balancing by balancing holes
- Multi-cutlet feature enables usage of the pump for different delivery pressures
- 50 Hz/60 Hz availability
Applications
- Fire-fighting
- Booster service
- Mine dewatering
- Boiler feed
- Sprinkler Irrigation
- Descaling
