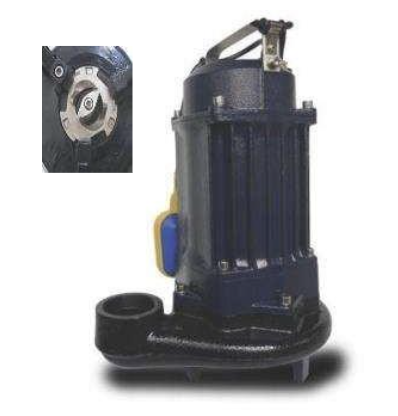

Light waste water pumps are designed for pumping waste water from residential and small commercial buildings. These motors are of dry type with E or F class insulation for reliable service and pumps are offered with different type of impellers such as vortex, single channel enclosed, single channel semi open, multi-channel enclosed etc. These pumps are available in both single phase and three phase power supply for continuous duty. Double face mechanical seals ensure reliability and trouble-free service for long life. Few models are supplied with fully stainless steel
General Specifications
| Maximum Flow | upto 180m³/h |
| Head | upto 62m |
| Speed | 2900RPM |
| Impeller Type | Enclosed / Semi open impeller |
| Outlet Size | upto 150mm |
| Power | upto 15kW |
| Liquid Temperature | upto 40°C |
| Max Solid Size | upto 19mm |
| Shaft Seal | Mechanical seal |
| Material of Construction (MOC) | Cast Iron & Stainless Steel |
| Bearing Lubrication | Grease |
| Maximum Immersion Depth | 10m |
| Maximum Working Pressure | upto 5bar |
Features
- Wide hydraulic ranges
- Heavy duty bearings for long life
- Dual mechanical seal
- Stainless steel motor body
Application
- Dewatering
- Light sewage handling
- Waste water transfer
- Pumping water from pit, trench and basin
- Flood control
