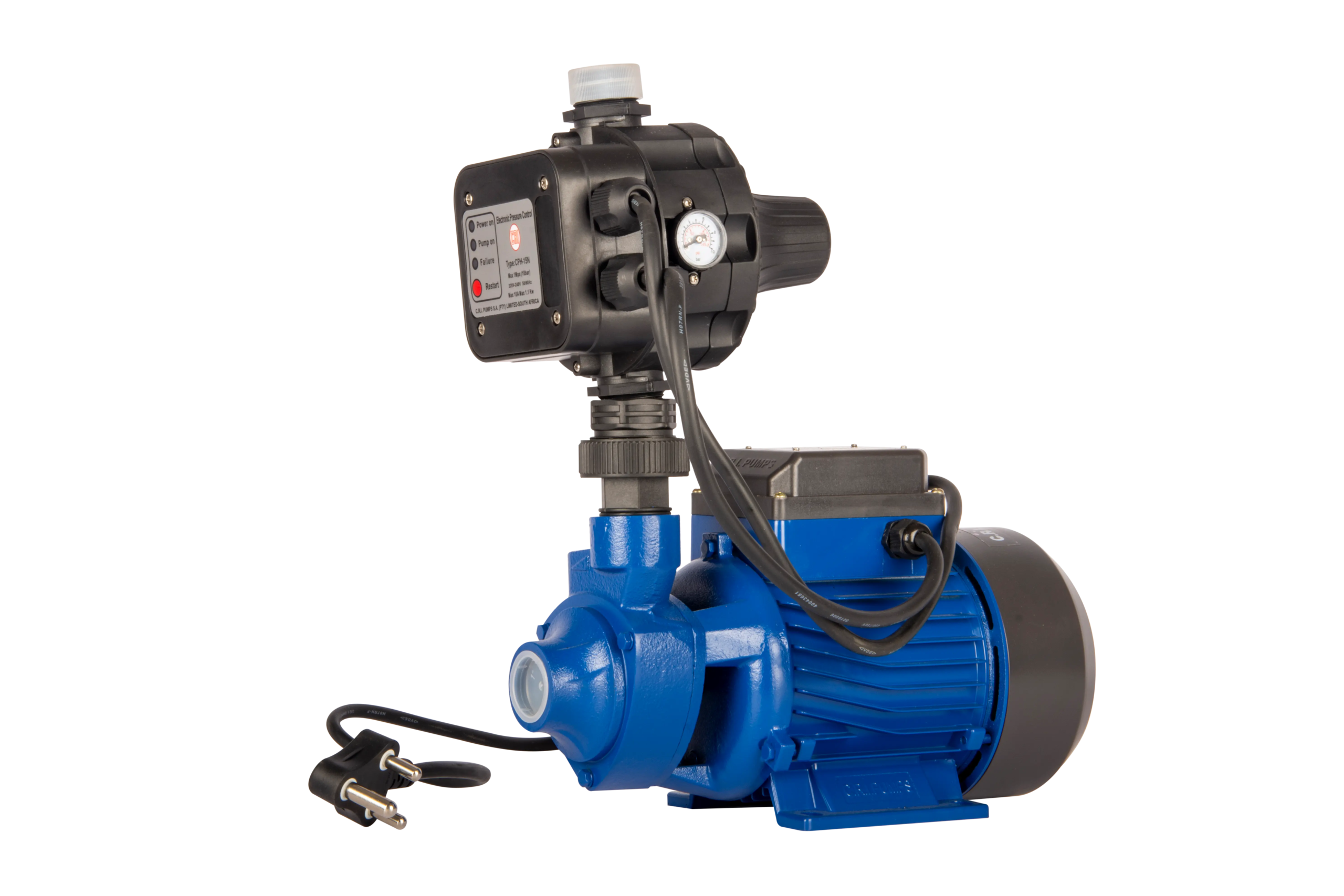

C.R.I. Peripheral pumps are non selfpriming monoblock type supplied with peripheral impeller for higher head requirement. These pumps are rigid in construction and compact design. It is highly suitable for pumping clear water from sump and shallow wells. It’s brass impeller and high precision mechanical seal ensures durability and stainless steel insert eleminates jamming of impeller over a period kept idle. All single phase pumps are thermally protected.
Technical Specifications
| Pump Model | PEM-7N-QF with pre-wired Automatic Pressure switch |
| Motor Power | 0.75 kW |
| Version | Single phase, 230V, 50Hz, A.C. Supply |
| Type of Duty | S1 Continuous |
| Degree of Protection | IP 54 |
| Class of Insulation | B |
| Rated & Max. Flow Rate | 1.5 & 2.8m³/h |
| Rated & Max.Head | 30 & 54m |
| Max.Suction Lift | 6 m |
| Sealing Type | Mechanical Seal |
| Max.Liquid Temperature | 35°C |
| Max.Ambient Temperature | 40°C |
| Max.Operating Pressure | 5.4 bar |
| Motor Winding | Copper |
| Suction x Delivery Size | 1 “x 1 “ |
| Carton box contains | 1 x Pump & 1 x Pressure switch |
Features
- Silent operation
- Sturdy and compact design
- Thermal protection
- Automatic ON-OFF operation
Applications
- Residential
- Garden
- Pressure boosting
- Landscaping
- Sprinkler systems
- Fountains
- Domestic RO systems
Download catalogue Peripheral Pump
