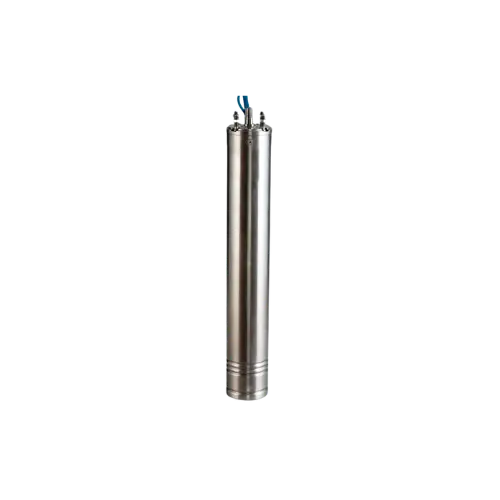

C.R.I. “W series” motors are deep well / bore hole rewindable submersible type, pre-filled with water, which acts as coolant and lubricant. These motors are available in single phase and three phase power supply. All single phase motors are thermally protected . Rotors are supported with bush and thrust bearings to withstand maximum axial and radial thrust loads. All mounting dimensions are in accordance with NEMA standards.
General Specifications
| Nominal Diameter | 4″ |
| Series | Water Filled Rewindable Submersible Motors |
| Power Range kW | Single Phase : 0.37 – 2.2kW, Three Phase : 0.37 – 7.5kW , * Single phase motors are thermally protected. |
| Speed | 2900 rpm |
| Versions | Single Phase : 230V 50Hz, Three Phase : 380V -415V, 50Hz |
| Method of Starting | Single Phase – Capacitor Star Capacitor Run (CSCR), Three Phase – Direct On Line(DOL). |
| Maximum Down Thrust Load | 0.37 – 1.5kW – 3000N, 2.2 – 7.5 kW – 6500N |
| Type of Duty | S1 (Continuous) |
| Degree of Protection | IP 58 |
| Class of Insulation | Y |
| Max.Temperature of Liquid | 30˚C |
| Minimum Cooling Flow Along the Motor | 0.5 m/sec |
| Starts per Hour | Single Phase – 20 Times, Three Phase – 12 Times |
| Available M.O.C | Type A & N |
Features
- High efficiency
- Water lubricated rewindable motor
- Thermal protection in single phase motors
- Extremely hardwearing and water lubricated bearings
- Corrosion resistant stainless steel motor body
- Can be easily dismantled and repaired
Application
- Residence
- Agriculture
- Gardens
- Sprinkler systems
- Fountains
- Building services
